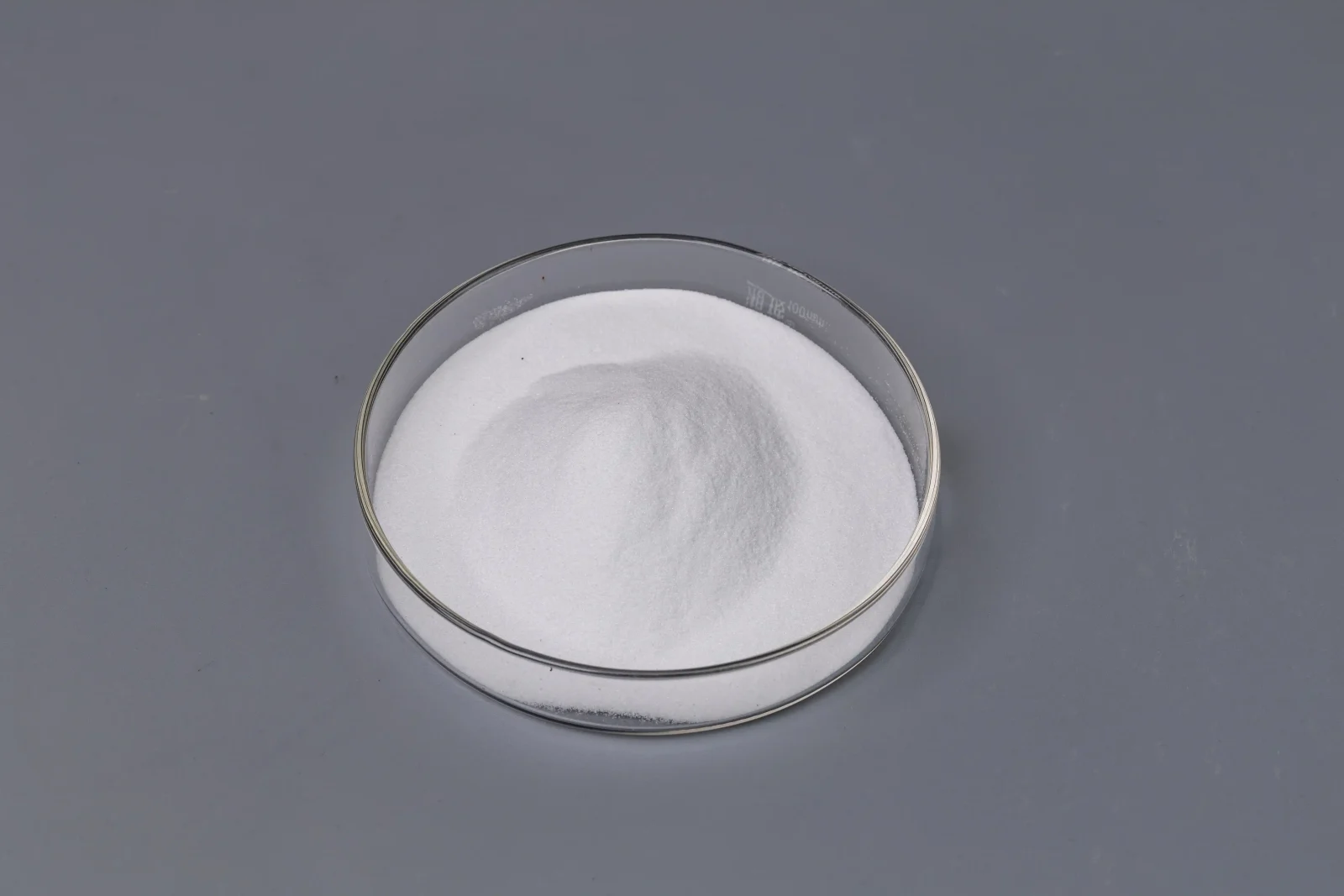

White Fused Alumina
High purity (99.5%) Al2O3. The standard for precision grinding and high-end refractories.
- High-purity α-Al₂O₃ with extremely low Na₂O content
- Consistent particle-size distribution per FEPA and JIS standards
- Excellent hardness and thermal stability for precision grinding
- Available in macro grits (F12–F220) and micro powders (F230–F2000)
Overview
White Fused Alumina (WFA) is produced by fusing high-purity Bayer-process alumina in an electric arc furnace at temperatures above 2,000 °C. The resulting ingot is crushed, sized, and magnetically separated to yield angular, sharp-edged grains with an Al₂O₃ content of 99.5 % or higher.
Thanks to its outstanding hardness (9 Mohs), chemical inertness, and friability, WFA is the preferred abrasive for applications that demand surface cleanliness, dimensional precision, and zero contamination — including aerospace component finishing, optical glass lapping, and high-performance refractory linings.
YUMO supplies WFA in full FEPA macro-grit (F12–F220) and micro-powder (F230–F2000) ranges, with strict lot-by-lot PSD testing and COA documentation.
Chemical Composition
| Component | Typical | Max |
|---|---|---|
| Al₂O₃ | ≥ 99.50% | – |
| Na₂O | ≤ 0.18% | 0.30% |
| Fe₂O₃ | ≤ 0.05% | 0.10% |
| SiO₂ | ≤ 0.03% | 0.06% |
| TiO₂ | ≤ 0.01% | – |
| CaO | ≤ 0.02% | – |
Physical Properties
| Property | Value |
|---|---|
| Mohs Hardness | 9.0 |
| Knoop Hardness | 2,000–2,100 kg/mm² |
| Bulk Density | 1.75–1.95 g/cm³ |
| True Density | 3.95 g/cm³ |
| Crystal Form | α-Al₂O₃ (corundum) |
| Melting Point | 2,050 °C |
| Color | White |
Size / Grit Specification
| Grit | Main Size Range |
|---|---|
| F12 | 2,000–1,700 μm |
| F16 | 1,400–1,180 μm |
| F24 | 850–710 μm |
| F36 | 600–500 μm |
| F46 | 425–355 μm |
| F60 | 300–250 μm |
| F80 | 212–180 μm |
| F120 | 125–106 μm |
| F220 | 75–63 μm |
| F320 | d50 = 29.2 ± 1.5 μm |
| F500 | d50 = 12.8 ± 1.0 μm |
| F1000 | d50 = 4.5 ± 0.8 μm |
| F2000 | d50 = 1.2 ± 0.3 μm |
Applications
Packaging & Shipping
- 25 kg woven PP bag with inner PE liner
- 1,000 kg (1 MT) jumbo bag, palletized
- Custom packaging and private labeling available
- Standard export palletizing with shrink-wrap
FAQ
Are you a manufacturer or a trader?
We are a manufacturer. All products are produced and tested in-house at our Wuzhi Industrial Park facility in Henan, China.
Can I request a free sample?
Yes. Lab samples (typically 500 g–1 kg) are available free of charge and ship within 48 hours via express courier.
What is the standard lead time?
Stock grades ship within 7–10 working days. Custom sizing or large orders may require 14–21 days.
Do you provide a Certificate of Analysis?
Every shipment includes a lot-specific COA covering chemical composition, PSD, and bulk density.
What is the minimum order quantity?
Our standard MOQ is 1 MT, but we can accommodate smaller trial orders for qualification purposes.
Downloads
Technical data sheets and certificates are available upon request. Contact us.
